FILTRO TANGENZIALE PLANET

Equipements > FILTRAZIONE CHIARIFICA

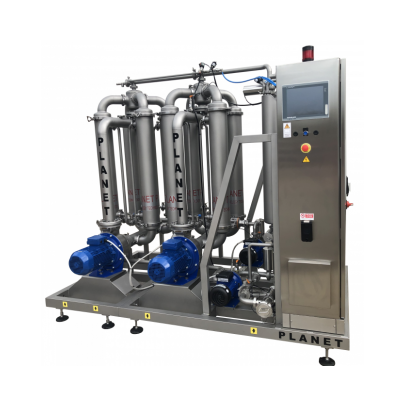

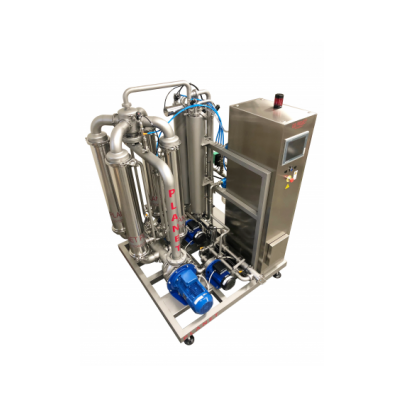

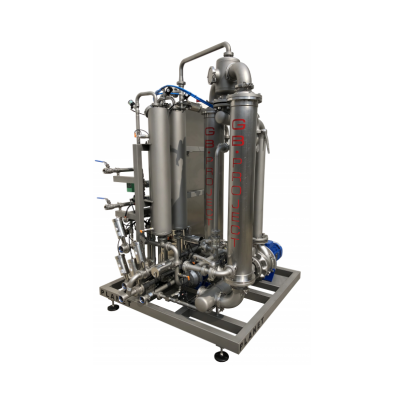

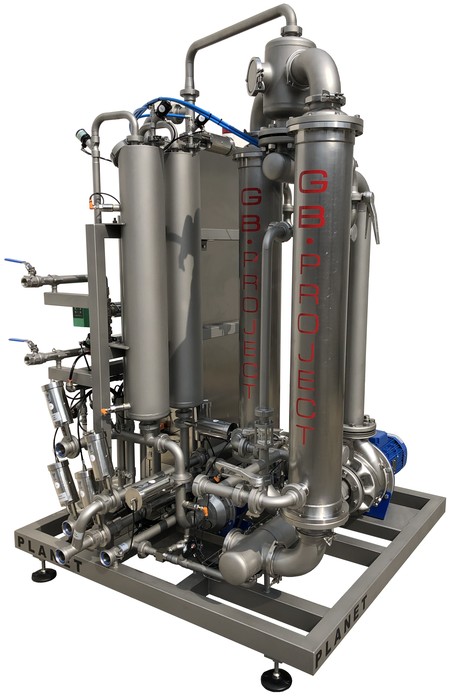

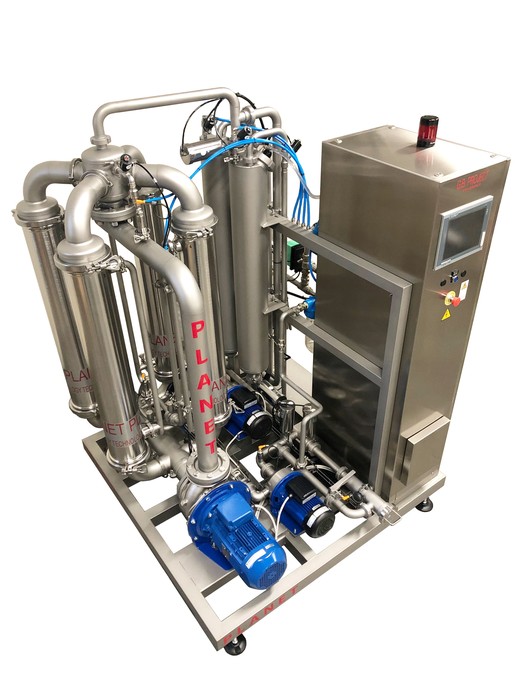

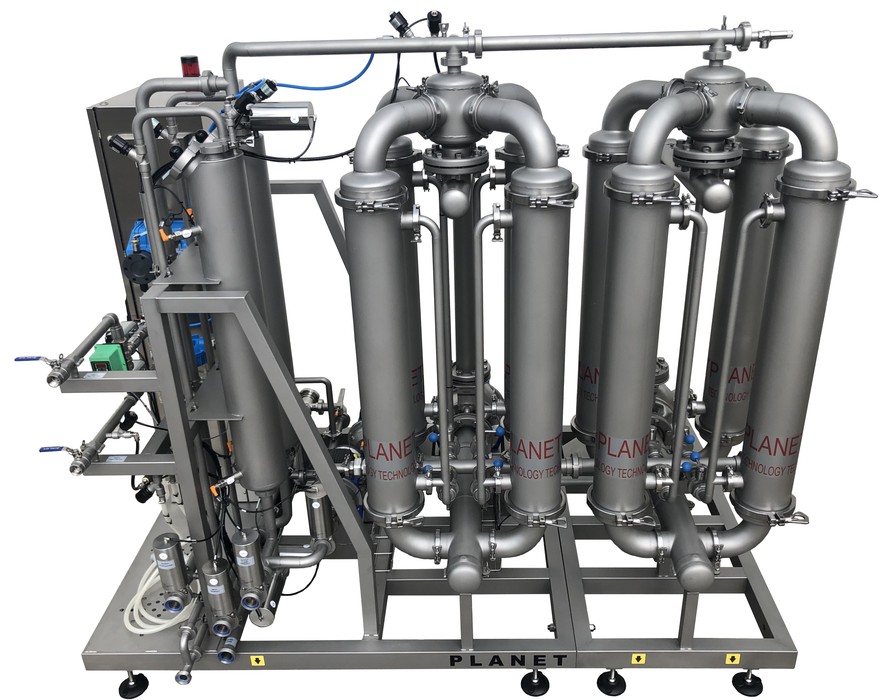

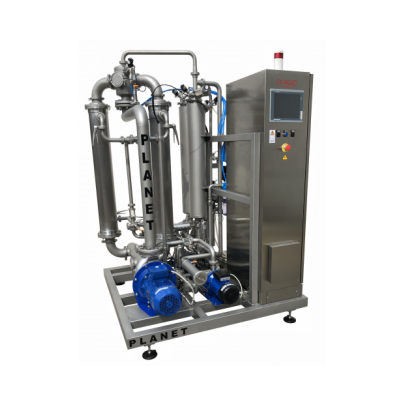

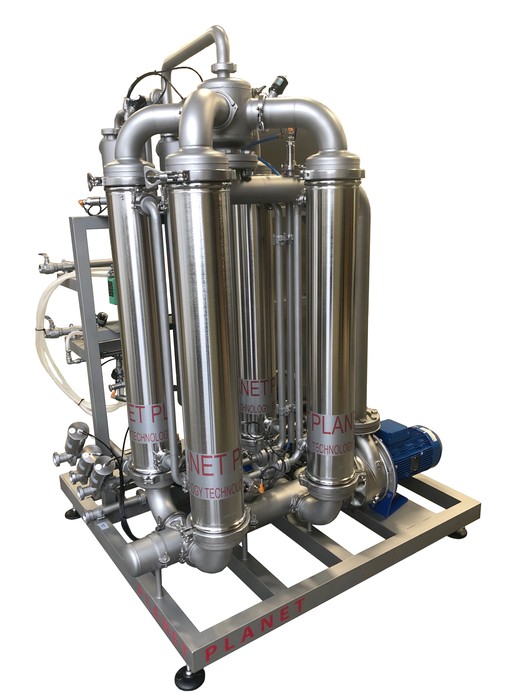

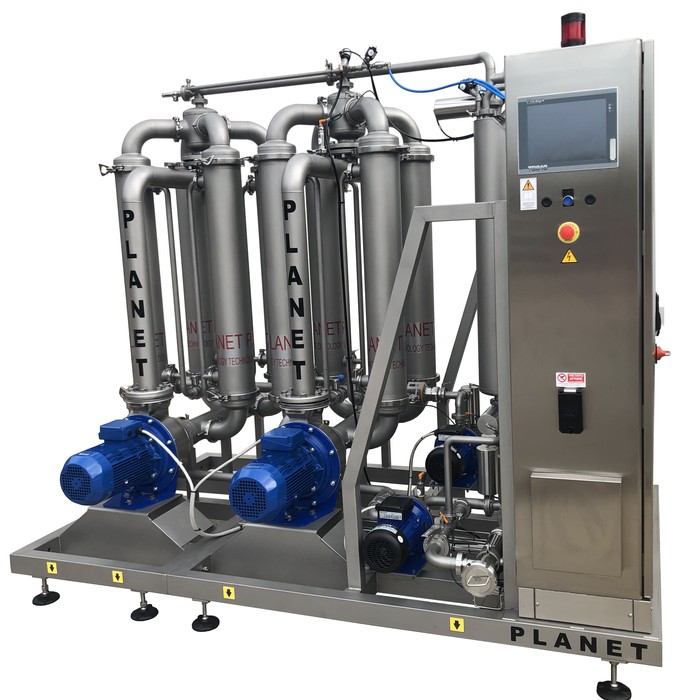

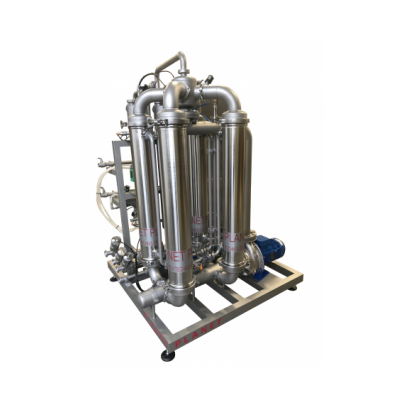

AUTOMATIC CROSS FLOW FILTER MOD. PLANET

The automatic cross flow filter filters MOD. PLANET are equipped with electrical panel with touch screen and PLC for all controls, to see and fix all necessary parameters for the automatic cycles. For this reason, there is no need for the presence of operators during the filtering phase.

The core of the filtering process is a polymer semipermeable film along which the liquid to be treated is run at low pressure and with cross flow.
With this system, the liquid goes through the membrane and comes out in the form of polished filtrate, while the solid components are retained by, and continuously removed from, the filtering surface thanks to the motion of the liquid on such surface; the result is stable flow filtration

The filtering membranes consist of a polypropylene polymer with a symmetrical capillary structure and a nominal pore gauge of 0.2 micron. The membrane's external structure is covered by a stainless-steel housing connected to the machine through Clamp joints and food-grade flanges.


FILTRO TANGEZIALE AUTOMATICO MOD. PLANET

Il filtro automatico a flussotangenziale  MOD. PLANET è dotato di quadro elettrico con touch screen e PLC per tutti i controlli, per visualizzare e impostare  tutti i parametri necessari per i cicli automatici. Per questo motivo, non è necessaria la presenza di operatori durante la fase di filtrazione.

La membrana filtrante è formata da capillari attraverso  il quale il liquido  viene fatto scorrere a bassa pressione in  flusso tangenziale.
Con questo sistema, il liquido passa attraverso la membrana ed esce perfettamente filtrato e limpido, mentre i componenti solidi vengono trattenuti e rimossi continuamente dalla superficie filtrante grazie al movimento del liquido su tale superficie; il risultato è una filtrazione con portata  stabile.

Le membrane filtranti sono costituite da un polimero polipropilene con una struttura capillare simmetrica con porosità di 0,2 micron. La struttura esterna della membrana è coperta da un alloggiamento in acciaio inossidabile collegato alla macchina tramite giunti a morsetto e flange per uso alimentare.
Le pome sono gestite da variatore di frequenza cosi da ottenere cicli di filtrazione lunghi e assorbimenti elettrici contenuti.

DATI TECNICI - TECHNICAL DATA

MODELLO / MODEL

PLANET 20

PLANET 40

PLANET 80

PLANET 120

PLANET 160

SUPERFICE FILTRANTE / FILTRATION SURFACE

20 mq

40 mq

80 mq

120 mq

160 mq

Q.TA' MEMBRANE / Q.TY OF MEMBRANE

N. 2

N. 4

N. 8

N. 12

N. 16

POTENZA INSTALLATA / POWER

5 KW

5 KW

8 KW

15 KW

22 KW
